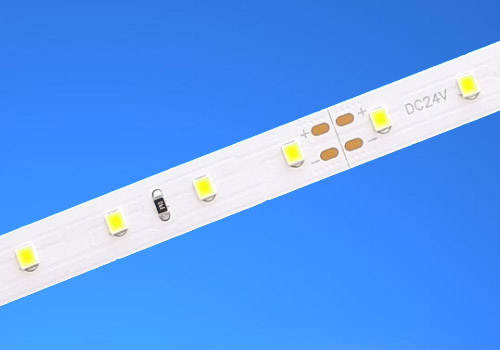

SMD2835 LED Strip

Parameters:

Vol.: DC12V/DC24V

LED Type:SMD2835

LED Per Meter:60/120/180/240

Power:36W/72W/108W/120W

CCT: 3000K/4000K/5000K/6000K

CRI (Ra): ＞85＞90＞95

IP grade: IP33/IP65/IP68

Ambient temperature:-20℃~+45℃

Length: 5M/Reel 10M/Reel

Width:8mm/10mm/12mm

Features:

1. Adopt top SMD2835.High brightness.

2. DC12V low voltage, high security.

3. Low power consumption, long life, free maintenance

4. White, yellow and black PCB available.
5. Cuttable length: every 3 leds cuttable for DC12V type
6. IP20 (Non-waterproof) ,IP65(glue on surface),IP68(Silicone tube)
7.3M adhesive tape easily for fixing

8. CE,RoHS Certificated,LM80 test

9. Life span: >50000hours

10.3years warranty

Applications:

1. Apply to KTV,Market and Cabinet for corner and outline decoration
2. Decorative lighting for festivals, events, shows, exhibitions

3. Lighting for construction decorative.

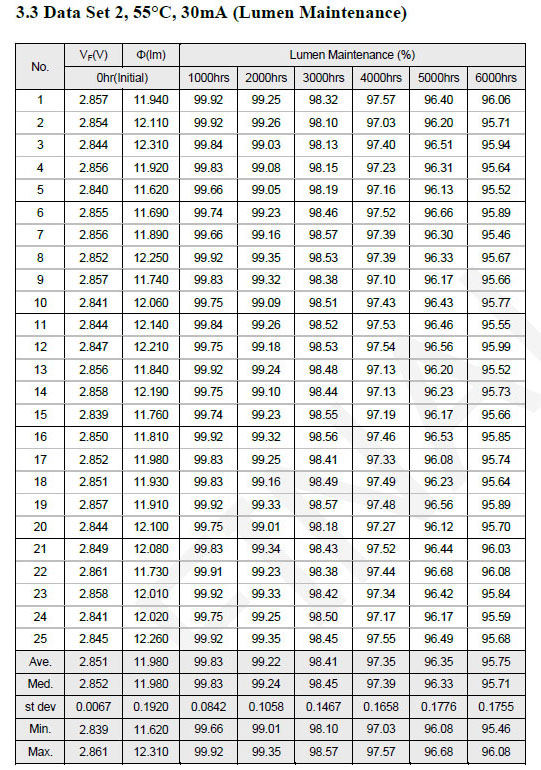

Date report:

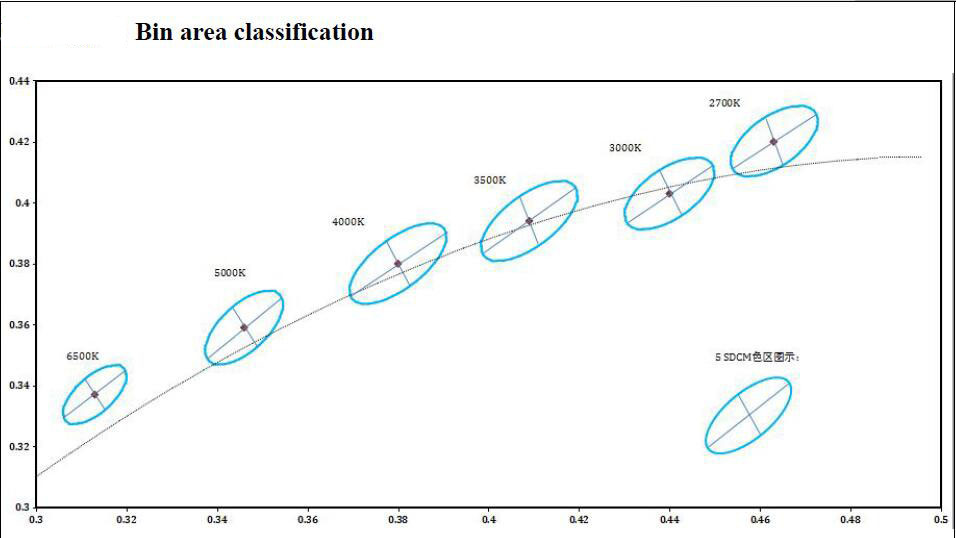

Bin Area Diagram:
